| DFI Lanparty nF4 Ultra-D & SLI-DR Thermal Images - Page 2 of 3 |
Posted: May 25, 2005
Author: Asylum & Spire
Manufacturer: N/A
Source: N/A
Comment or Question: Post Here
|
|

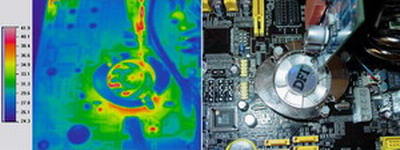

Here we are directly over the chipset fan. Although the photo is colorful, the maximum temperature shown here is 41.9° C.
Click Image for larger view

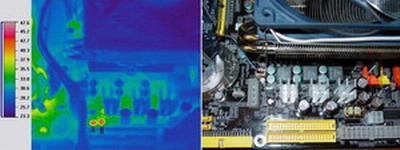

This next image shows two small chips labeled A and B, with corresponding temperatures of 46.8 °C and 47.6 °C.
Click Image for larger view

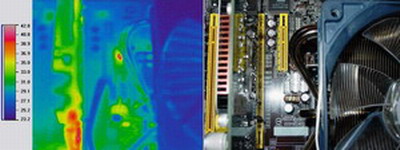

Below we look between the video card and CPU. Mostly cool in this area with a max temp of 42.8 °C.
Click Image for larger view

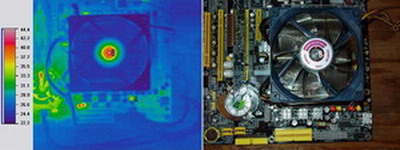

This image shows another small chip labeled A with a temperature of 38.3 °C. Also shown is the CPU fan labeled B showing 44.4 °C around the bearings.
Click Image for larger view

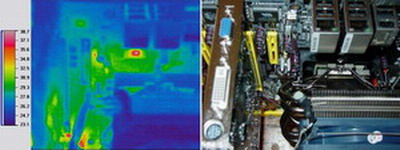

In this next one we see another area near the USB ports with a temperature of 38.7 °C.
Click Image for larger view

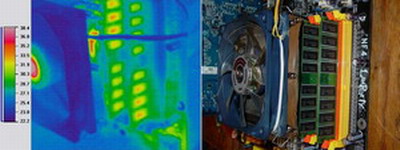

These next two images are of the ram (TCCD G.Skill LE week 440), staying relatively cool from 33.0 °C to 38.4°C.
Click Image for larger view
So, who says heatspreaders are necessary for performance DDR? Keep in mind these modules are running at this temperature while at 300Mhz (600 MHz DDR)!
Click Image for larger view
Please read on to the next page for more... Next
