Cooler Master Real Power Pro 1250W Power Supply
Author: Jason Kohrs
Manufacturer: Cooler Master
Source: Cooler Master
Purchase: PriceGrabber
Comment or Question: Post Here
Page: 1 of 8 [ 1 2 3 4 5 6 7 8 ]
Cooler Master Real Power Pro 1250W Power Supply
October 09, 2007

The capacity of many modern power supplies is just amazing. While 1000W seemed ridiculous just a short time ago, manufacturers are now offering units with 1200W, 1300W, and even higher power ratings. The average computer system won't use a fraction of the power available, and even extremely powerful gaming rigs and servers might be hard pressed to put a strain on such a power supply.

Perhaps there are a handful of users who actually need this kind of power, perhaps some people are looking to future proof their system in the power supply department, and perhaps having a big power supply is an ego trip for some. Whatever the case may be, this type of power supply is becoming more widely available, and many of the big players in the power supply market now offer units rated for 1kW and above.


Cooler Master is one of these big players, and they now offer several units with power ratings in excess of 1000W. One of the latest offerings in their Real Power Pro line up 'weighs in' with a 1250W continuous power output, and the ability to hit a maximum of 1375W. Cooler Master provided one of these units for us to evaluate, and we'll do our best to load it up!

Before taking a look at the Real Power Pro 1250W Power Supply provided for review, let's take a look at some published data taken from the Cooler Master website...

Features:

» World’s first six +12V rails for better power distribution in triple VGA cards and 2 ways server systems
» Six 6 pin PCI-e connectors offer great future upgradeability
» Three 8 pin PCI-e connectors are compatible with future graphic card upgradeability
» Compliance with the newest Intel standard ATX 12V V 2.3
» Compliance with the newest SSI standard EPS 12V V2.92
» Ultra-silent operation with intelligent 135mm fan speed control (< 16dBA)
» Eco-design for energy and money saving by Active PFC.(>0.99)/ high efficiency(>85%)
» Compact size design for easy installation by High Power Density (150*180*86 mm)
» Power Failure Detector will light up when Over-Voltage, Under-Voltage, Over-Temperature, Over-Current, Over-Loading, and Short circuit occur
» Five-year warranty

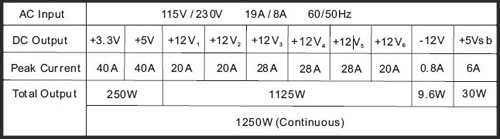

Specifications:

» Model: RS-C50-EMBA-D2
» Type: ATX Form Factor 12V V2.3 / SSI standard EPS 12V V2.92
» Dimension (W / H / D): 150 x 180 x 86 (mm)
» Input Voltage: 90 ~ 264V (Auto Range) » Input Current: 19A @ 115Vac / 10A @ 230Vac
» Input Frequency Range: 47 ~ 63 Hz
» PFC: Active PFC (0.99)
» Power Good Signal: 100 ~ 500 ms
» Hold Up Time: > 17 ms
» Efficiency: >85% Typically
» MTBF: >100,000 hrs
» Protection: OVP / OCP / OTP / OPP / SCP / UVP
» Output Capacity: 1250 Watts Continuous
» Max. Output Capacity: 1375 Watts
» Operation Temperature: 0~50?(Nominal Input Voltage)
» Safety: CE / cUL / TUV / NEMKO / BSMI / FCC/CCC/C-tick
» Certification: SLI/ 80 Plus
» Fan: Ultra-silent 135mm fan with intelligent speed control
