 Enermax CS-10182-BA Server Tower Chassis - Page 4 of 6

Posted:  February 23, 2004
Author:  Jason Kohrs
Manufacturer:  Enermax / Maxpoint
Source:  N/A - Search PriceGrabber for Best Deal


Internal Features:

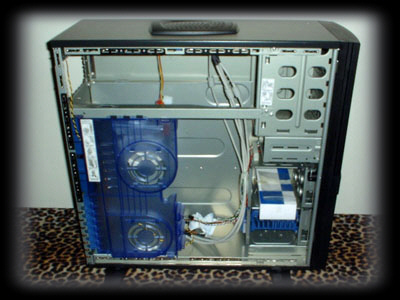

The side of the case features a translucent blue plastic door that supports two 80 mm fans, and includes white plastic filters for each fan.

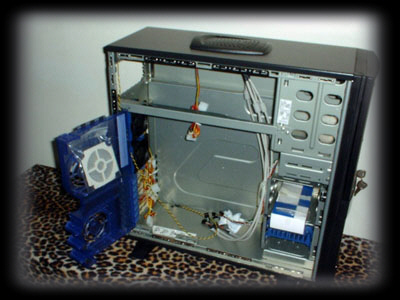

The blue plastic door hinges out of the way for access to the motherboard area, and can also pop out completely rather easily.

The fan filters are the same as on the front of the case, and feature a white plastic frame with a loosely woven filter element. The rear of the case also features an intrusion detection switch. The other end of the yellow and black wire connects to a motherboard header (if supported) and can be configured to restrict use of the PC with the side panel out of place.

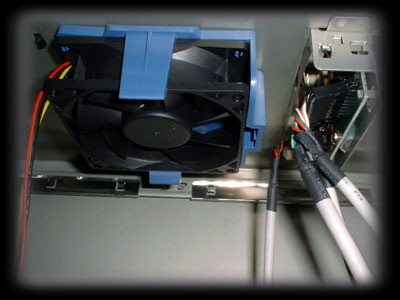

The top exhaust fan mounts to the case with a tool-less clip, and is situated just behind the connections for the top access Firewire, USB, and audio connections.

The connections to the top access panel have nice long leads, ensuring that you will be able to reach any motherboard header, or PCI card connection on the rear of your case. The three 80 mm fans included with the case all have 3 pin power leads (with speed sensing), as well as adaptors for use on 4 pin connections.

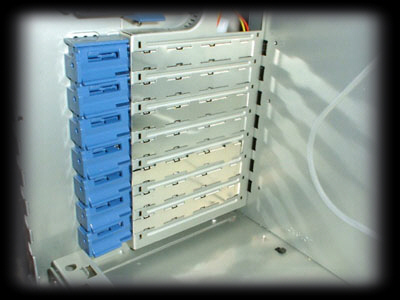

The PCI/AGP slots are all tool-less, as well. The blue plastic tabs slide into position to latch the cards into place (discussed in greater detail below).

Please read on to page five for more on the Enermax CS-10182-BA...  Next
